AlSi10Mg

產品名稱MIM-TC4化學成分wt.%TiOCHNFe余量≤0.18≤0.020.0120.020.25AlV5.5-6.53.5-4.5物理性能粒度范圍/μm振實密度D10D50D90g/cm35.0-7.010.0-13.516.0-22.0≥2.85燒結后化學成分wt.%TiOCHNFe余量≤0.35≤0.10.0150.040.3AlV5.5-6.753.5-4.5燒結件特性密度屈服強度極

Last
Next

詳細信息

Type	AlSi10Mg
chemical composition wt.%	O	Al	Si	Mg	Fe	Ni
	≤0.05	Bal.	7.00	0.5	≤0.2	≤0.05
	Mn	Sn	Cu	Pb	Zn	Ti
	≤0.45	≤0.05	≤0.05	≤0.05	≤0.1	≤0.05
physical properties	size distribution μm	carney flow rate s/50g	apparent density g/cm3	oxygen content ppm	nitrogen content ppm	sphericity %
physical properties	20-63	≤15	≥1.40	≤500	≤100	≥90
mechanical properties (after heat treatment)	test temperature	tensile strength MPa	yield strength MPa	elongation %
mechanical properties (after heat treatment)	normal	310-330	210-220	≥11

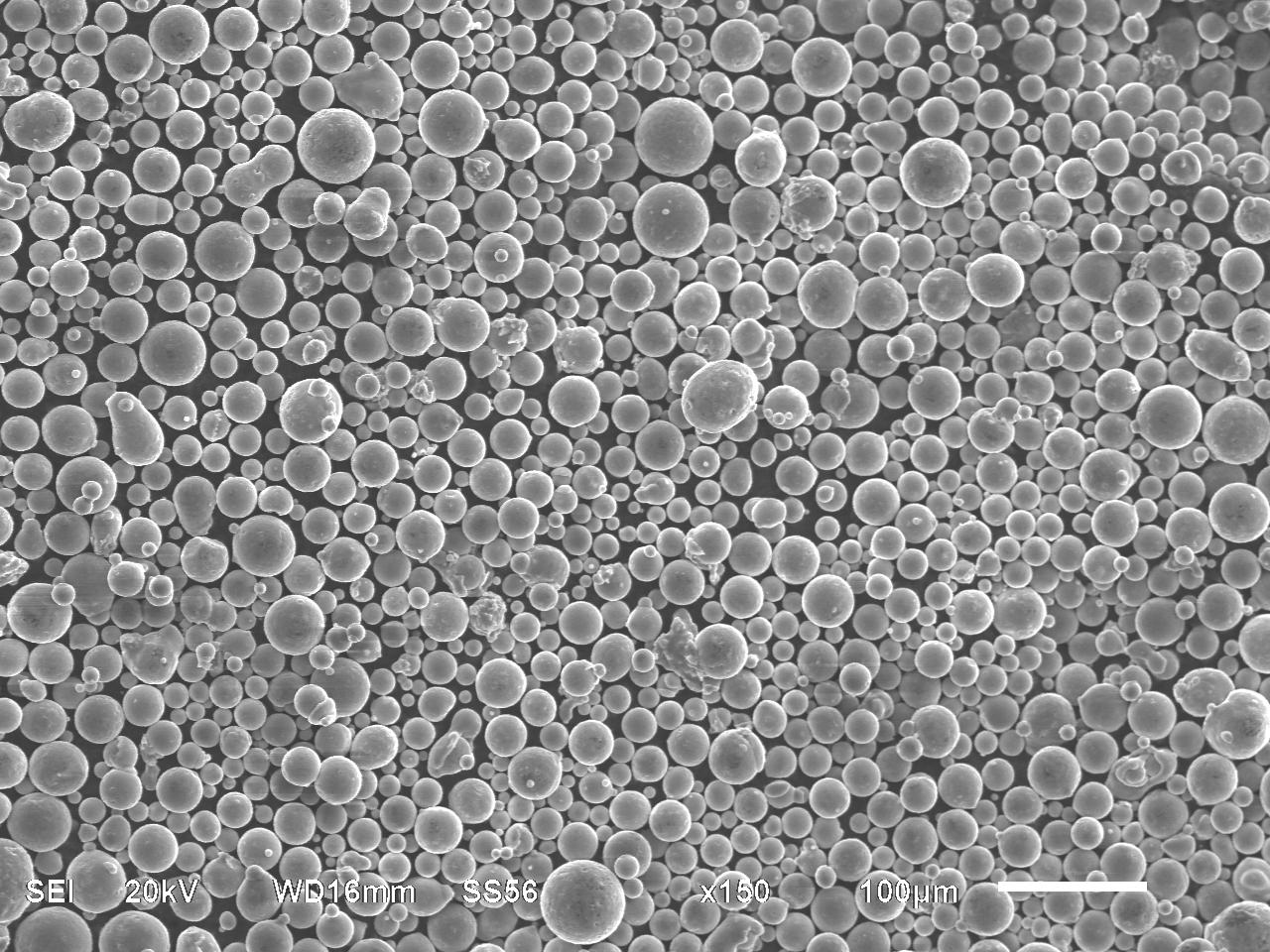

SEM
