MIM-TC4

產品名稱MIM-TC4化學成分wt.%TiOCHNFe余量≤0.18≤0.020.0120.020.25AlV5.5-6.53.5-4.5物理性能粒度范圍/μm振實密度D10D50D90g/cm35.0-7.010.0-13.516.0-22.0≥2.85燒結后化學成分wt.%TiOCHNFe余量≤0.35≤0.10.0150.040.3AlV5.5-6.753.5-4.5燒結件特性密度屈服強度極

Last
Next

詳細信息

Type	MIM-TC4
chemical composition wt.%	Ti	O	C	H	N	Fe
	Bal.	≤0.18	≤0.02	0.012	0.02	0.25
	Al	V
	5.5-6.5	3.5-4.5
Chemical Composition	Size distribution/μm				Tap density g/cm³
	D10	D50	D90		≥2.85
	5.0-7.0	10.0-13.5	16.0-22.0		≥2.85
After sintering wt.%	Ti	O	C	H	N	Fe
	Bal.	≤0.35	≤0.1	0.015	0.04	0.3
	Al	V
	5.5-6.75	3.5-4.5
Sintered compact properties	Density g/cm³	Yield strength Rp0.2/MPa	Tensile strength MPa		Elongation %	Hardness HVI
Sintered compact properties	≥4.4	≥900	≥1000		≥10	320-400

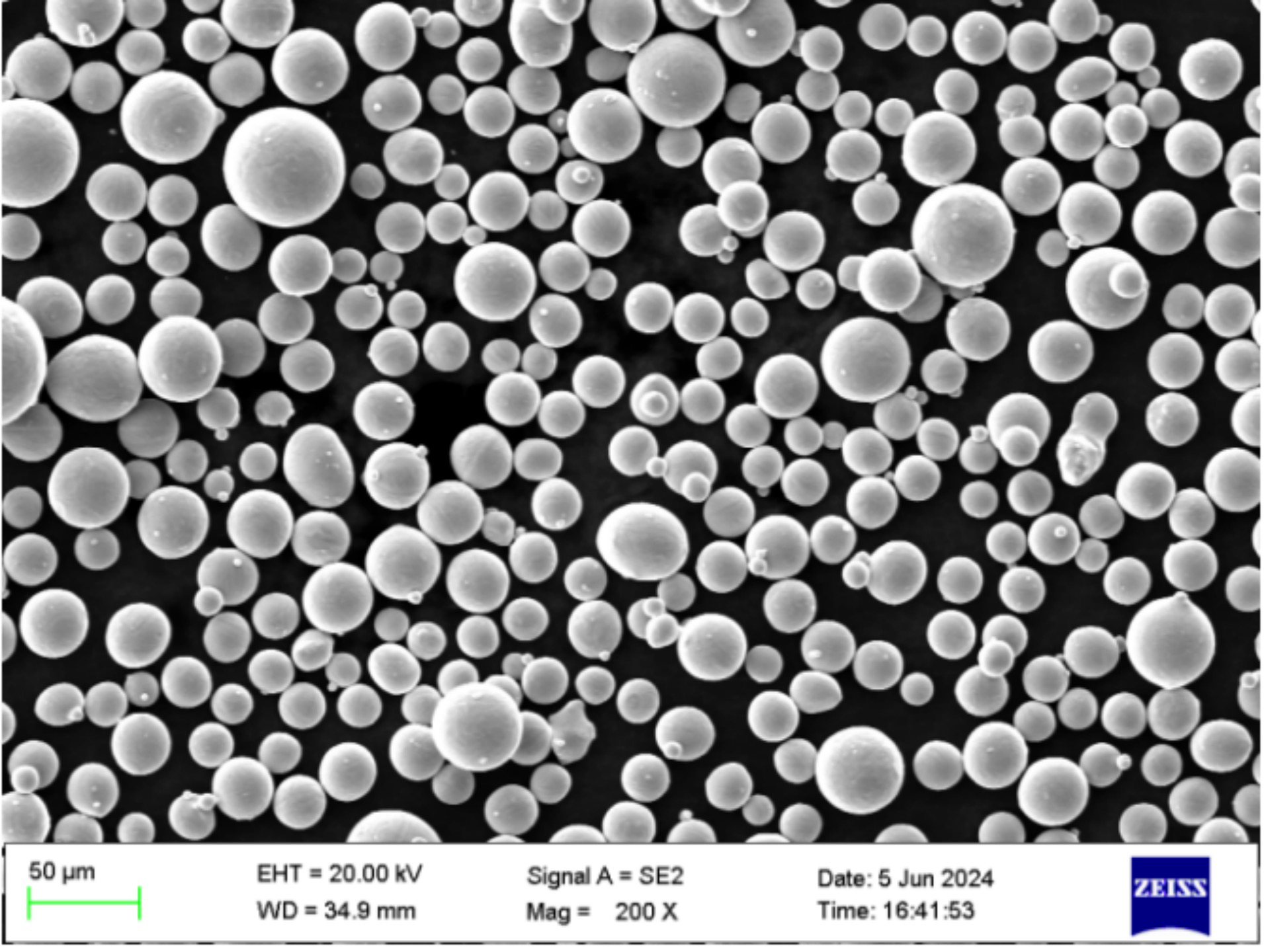

SEM
